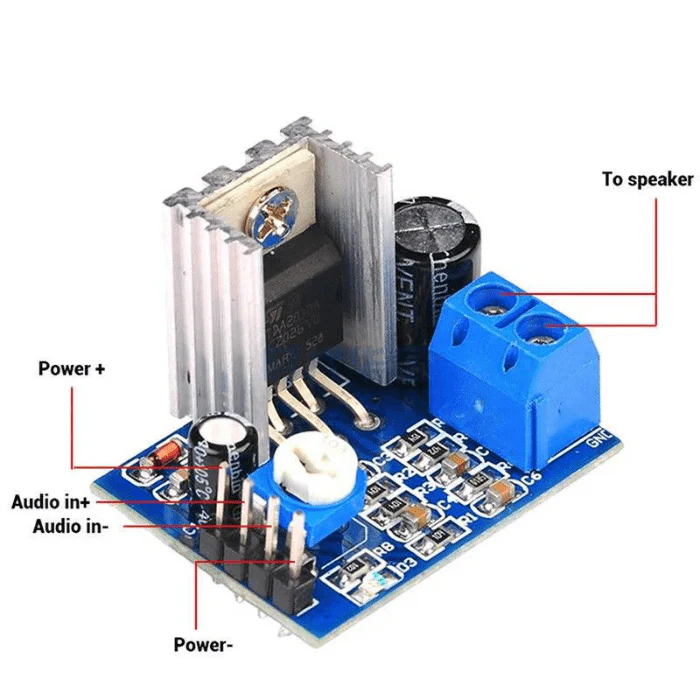

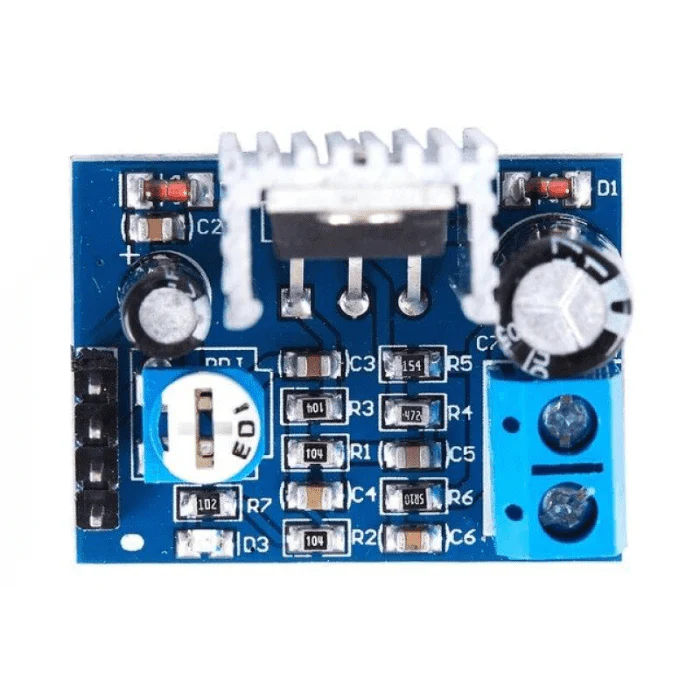

TDA2030A Audio Power Amplifier Module

TDA2030A Audio Power Amplifier Module is a compact, high-performance audio amplification solution designed for clear sound reproduction, high efficiency, and reliable operation. Based on the popular TDA2030A monolithic integrated circuit, this module delivers powerful and distortion-free audio output, making it ideal for home audio systems, DIY amplifier projects, active speakers, and embedded audio applications.

Known for its excellent audio fidelity and robust protection features, the TDA2030A amplifier module is widely used by electronics enthusiasts, system integrators, and manufacturers. Its ready-to-use design significantly reduces development time, allowing users to integrate high-quality audio amplification into their projects with minimal external components.

Key Features of TDA2030A Audio Power Amplifier Module

• High Output Power
  Delivers up to 18W output power with suitable power supply and load, making it suitable for driving medium-power speakers.

• Low Total Harmonic Distortion (THD)
  Ensures clean and clear audio output with minimal distortion, even at higher volume levels.

• Wide Operating Voltage Range
  Supports both single and dual power supply configurations, offering flexibility in different audio designs.

• High Signal-to-Noise Ratio
  Produces low background noise for enhanced listening experience.

• Built-in Protection Circuits
  Includes internal protection against short circuits, overheating, and overload conditions, ensuring long-term reliability.

• Compact & Ready-to-Use Module
  Pre-assembled PCB with essential passive components allows quick installation without complex circuit design.

• Efficient Heat Dissipation Support
  Designed to work with external heat sinks for stable and continuous operation.

Technical Specifications – TDA2030A Audio Power Amplifier Module

• Amplifier IC: TDA2030A

• Amplifier Type: Class AB Audio Power Amplifier

• Maximum Output Power: Up to 18W

• Recommended Load Impedance: 4Ω – 8Ω

• Operating Voltage: ±6V to ±18V (dual supply) or 12V – 36V (single supply)

• Quiescent Current: Low idle current for efficient operation

• Total Harmonic Distortion (THD): Typically <0.1%

• Frequency Response: 20Hz – 20kHz

• Input Sensitivity: ~0.5V

• Channel Configuration: Mono

• PCB Type: FR-4, pre-assembled

• Cooling Requirement: External heat sink recommended

• Operating Temperature: –20°C to +70°C

Specifications may vary slightly depending on module design and manufacturer.

Applications of TDA2030A Audio Power Amplifier Module

The TDA 2030A audio amplifier module is highly versatile and suitable for a wide range of audio and electronic applications:

• DIY Audio Amplifier Projects
  Ideal for hobbyists and electronics enthusiasts building custom audio systems.

• Home Audio Systems
  Suitable for bookshelf speakers, mini amplifiers, and compact sound systems.

• Active Speaker Systems
  Easily integrated into powered speaker designs for clear and powerful sound output.

• TV, Radio & Multimedia Systems
  Used in televisions, FM radios, and multimedia speaker setups.

• Educational & Training Kits
  Perfect for engineering students and labs to understand audio amplification concepts.

• Embedded Audio Applications
  Used in intercom systems, announcement systems, and small PA solutions.

Why Choose the TDA2030A Audio Power Amplifier Module?

The TDA2030A amplifier module offers an excellent balance of audio performance, durability, and affordability. Its Class AB architecture ensures low distortion and high sound quality, while integrated safety features protect both the amplifier and connected speakers. The module’s compact size and simple wiring make it ideal for quick integration into new designs or upgrades to existing audio systems.

Whether you are designing a DIY audio amplifier, upgrading an active speaker, or integrating audio amplification into an embedded system, the TDA2030A Audio Power Amplifier Module provides reliable, high-quality performance trusted by audio professionals and enthusiasts alike.

Upgrade your sound system with the TDA2030A Audio Power Amplifier Module and enjoy powerful, clear, and distortion-free audio output.

Package Includes:

1 x TDA2030A Audio Power Amplifier Module

FAQ

1. Where can we buy this TDA2030A Audio Power Amplifier Module?

This product is available online https://aiiottech.in/product/tda-2030a-audio-power-amplifier-module/ and also available at our store in Pudupakkam/Kelambakkam, Chennai-603103

2. When can I get this TDA2030A Audio Power Amplifier Module after placing the order?

RGRJ AIIoT TECHNOLOGIES will immediately ship and deliver the product within 1-3 working days.
