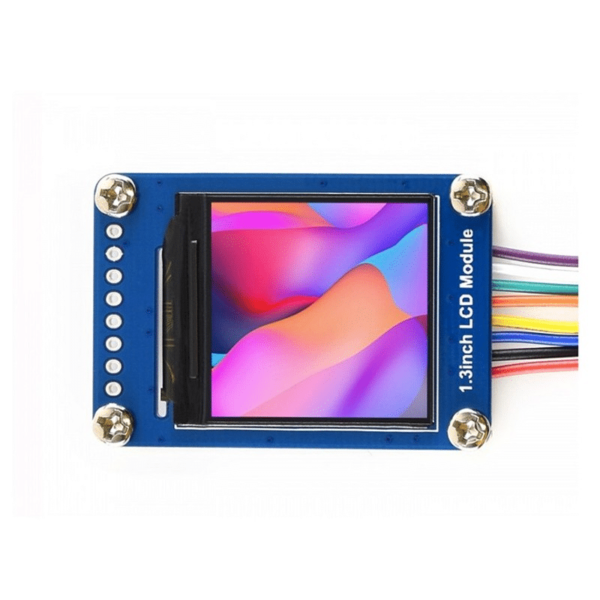

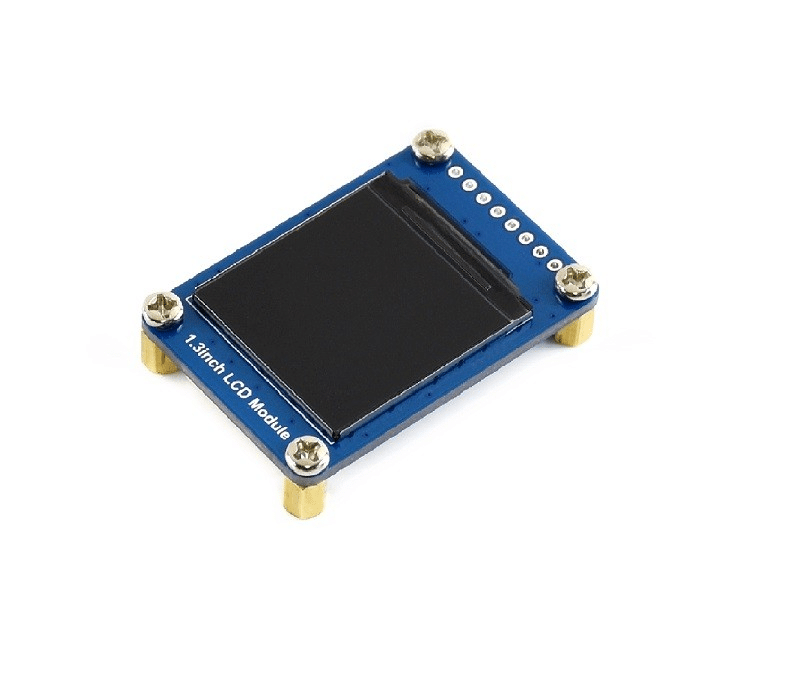

Waveshare 240×240 LCD Display Module (1.3inch IPS HD)

Waveshare 240×240 LCD Display Module 1.3inch is a compact, high-performance display solution designed for developers, hobbyists, and engineers working on embedded systems and IoT projects. Featuring a crisp 240×240 pixel resolution, vibrant color output, and a small form factor, this display module is ideal for applications where space, clarity, and efficiency are critical.

Built with reliability and versatility in mind, this LCD module integrates seamlessly with popular microcontrollers such as Arduino, ESP32, Raspberry Pi, and STM32. Whether you’re designing a smart wearable, industrial interface, or portable device, this display provides a visually rich and responsive user interface.

🔧 Key Features of Waveshare 240×240 LCD Display Module

1. High-Resolution Display
With a 240×240 pixel resolution, this module delivers sharp images, smooth graphics, and clear text. The IPS panel ensures consistent color reproduction and wide viewing angles, making it perfect for interactive displays.

2. 1.3-Inch Compact Size
The small 1.3-inch form factor makes it ideal for space-constrained designs such as handheld devices, wearables, and compact control panels.

3. IPS Technology for Wide Viewing Angles
Unlike traditional TFT displays, the IPS panel allows viewing from multiple angles without color distortion, enhancing usability in real-world environments.

4. SPI Interface for Fast Communication
The module uses an SPI (Serial Peripheral Interface), ensuring fast data transfer and easy integration with most microcontrollers.

5. Low Power Consumption
Designed for energy-efficient applications, the display consumes minimal power, making it suitable for battery-operated devices.

6. Driver Support and Compatibility
Typically powered by drivers like ST7789, the module is supported by various libraries, simplifying development and reducing integration time.

7. Durable and Reliable Build
Manufactured with high-quality components, the display ensures long-term stability and performance even in demanding conditions.

📊 Specifications of Waveshare 240×240 LCD Display Module

• Display Size: 1.3 inches

• Resolution: 240 × 240 pixels

• Display Type: IPS LCD

• Interface: SPI

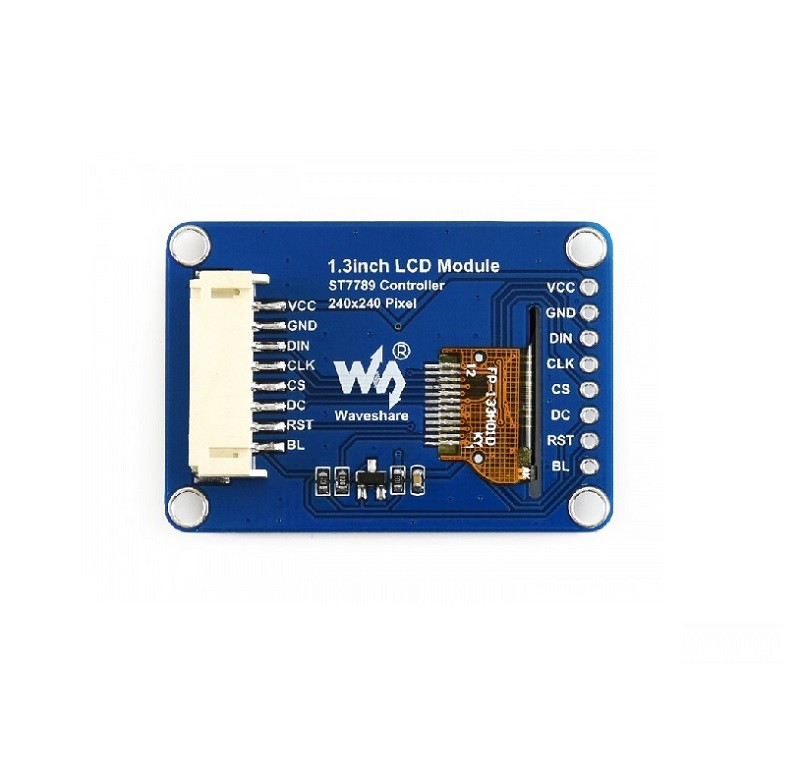

• Driver IC: ST7789 (commonly used)

• Color Depth: 65K / 262K colors (depending on configuration)

• Viewing Angle: Wide (IPS technology)

• Operating Voltage: 3.3V / 5V compatible (via onboard regulator, if available)

• Backlight: LED

• Dimensions: Compact PCB design suitable for embedded systems

• Compatibility: Arduino, ESP32, Raspberry Pi, STM32, and other MCUs

🚀 Applications of Waveshare 240×240 LCD Display Module

The Waveshare 240×240 LCD Display Module is highly versatile and can be used across a wide range of applications:

1. IoT Devices
Display sensor data such as temperature, humidity, pressure, and system status in real time for smart home and industrial IoT solutions.

2. Wearable Electronics
Its compact size and low power consumption make it ideal for smartwatches, fitness trackers, and portable health monitoring devices.

3. Embedded Systems Interfaces
Create intuitive graphical user interfaces (GUIs) for embedded systems, including menu navigation, icons, and real-time data visualization.

4. Robotics Projects
Use the display to show diagnostics, control parameters, and sensor feedback in robotics and automation systems.

5. Portable Instruments
Perfect for handheld measuring devices, multimeters, and data loggers where a clear display is essential.

6. DIY Electronics Projects
A great choice for hobbyists building custom gadgets, gaming consoles, or experimental prototypes.

7. Industrial Control Panels
Suitable for compact HMI (Human-Machine Interface) systems in industrial automation and monitoring setups.

💡 Why Choose This Display Module?

The Waveshare 240×240 LCD module stands out due to its balance of size, performance, and ease of integration. Unlike larger displays that consume more power and space, this module offers high-quality visuals in a compact footprint. Its SPI interface ensures minimal wiring complexity, while its compatibility with popular platforms reduces development time.

Additionally, the availability of open-source libraries and community support makes it beginner-friendly while still meeting the demands of advanced users. Whether you’re prototyping or developing a production-ready device, this display module provides the flexibility and performance you need.

The Waveshare 240×240 LCD Display Module is a powerful and compact display solution tailored for modern embedded applications. With its vibrant IPS panel, SPI interface, and wide compatibility, it is an excellent choice for developers seeking a reliable and visually appealing display for their next project.
