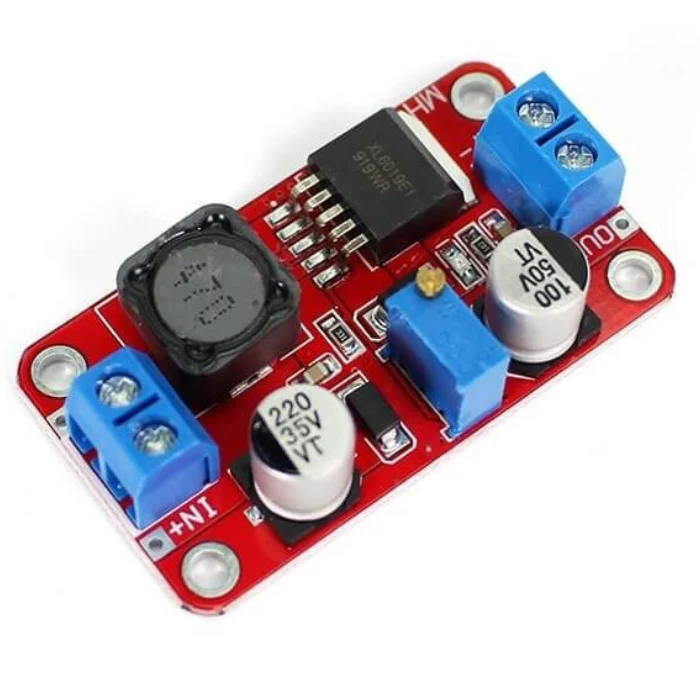

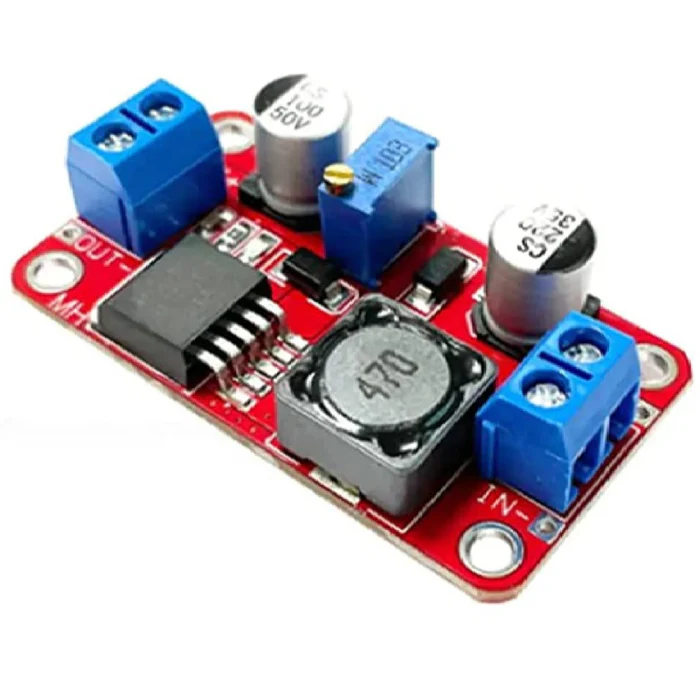

XL6019 DC-DC 5A Boost Power Supply Module (RED)

XL6019 DC-DC 5A Boost Power Supply Module is a high-performance step-up (boost) voltage regulator designed for engineers, hobbyists, and product developers who require stable, adjustable, and efficient power conversion. Built around the robust XL6019 switching regulator IC, this module converts lower DC input voltages into higher, regulated output voltages with excellent efficiency and reliability. It is ideal for battery-powered projects, embedded systems, automotive electronics, robotics, and industrial control applications.

With its wide input voltage range, high current capability, and onboard adjustment potentiometer, the XL6019 boost converter module provides a compact and cost-effective solution for powering sensitive electronic circuits where voltage stepping is required.

🔧 Key Features

• High Output Current Capability: Supports up to 5A peak current, making it suitable for powering motors, high-power LEDs, microcontrollers, and communication modules.

• Wide Input Voltage Range: Accepts input voltages typically from 3V to 35V DC, allowing compatibility with Li-ion batteries, solar panels, and DC adapters.

• Adjustable Output Voltage: Output voltage can be easily tuned via onboard multi-turn potentiometer, typically up to 40V DC.

• High Conversion Efficiency: Offers efficiency up to 94%, reducing heat generation and improving battery life in portable applications.

• Integrated Protection: Built-in current limiting, thermal shutdown, and soft-start protection ensure safe and reliable operation.

• Compact and Lightweight Design: Small PCB footprint enables easy integration into space-constrained designs.

• Stable Output Performance: Low ripple and excellent load regulation ensure smooth and consistent voltage delivery.

• Plug-and-Play Module: No external components required — just connect input and output terminals and adjust voltage.

📊 Technical Specifications

• Controller IC: XL6019

• Converter Type: DC-DC Step-Up (Boost)

• Input Voltage Range: 3V to 35V DC

• Output Voltage Range: 5V to 40V DC (adjustable)

• Maximum Output Current: Up to 5A (peak), 3A continuous recommended

• Conversion Efficiency: Up to 94%

• Switching Frequency: ~180 kHz

• Output Ripple: Low ripple with proper filtering

• Protection Features: Over-current protection, thermal shutdown, short-circuit protection

• Adjustment Method: Multi-turn potentiometer

• Operating Temperature: -40°C to +85°C

• Module Dimensions: Compact PCB size (approx. 50mm × 23mm × 14mm)

• Mounting Type: Through-hole pins / screw terminals (varies by model)

(Note: Actual performance depends on input voltage, output voltage, load current, and cooling conditions.)

⚡ Applications

The XL6019 DC-DC Boost Converter Module is widely used in both professional and DIY electronics projects due to its flexibility, efficiency, and reliability.

• Battery-Powered Devices: Step up 3.7V Li-ion or 7.4V LiPo batteries to 9V, 12V, 19V, or higher voltages for portable electronics.

• Arduino & Microcontroller Projects: Power boards and sensors that require stable higher voltages from lower-voltage sources.

• Automotive Electronics: Boost 12V systems to higher voltages for displays, inverters, and auxiliary circuits.

• Solar Power Systems: Efficiently raise panel output voltage to usable levels for charging circuits or control electronics.

• LED Drivers: Supply constant higher voltage for high-power LED strips and lighting systems.

• Robotics & IoT Devices: Provide regulated power to motors, wireless modules, cameras, and embedded systems.

• Industrial Control Systems: Use in PLC modules, sensor conditioning circuits, and portable test instruments.

• DIY Electronics & Prototyping: Ideal for breadboard experiments, laboratory setups, and educational kits.

🚀 Why Choose the XL6019 Boost Converter Module?

The XL6019 stands out among DC-DC boost modules due to its high current capability, excellent efficiency, and user-friendly adjustability. Whether you are designing a battery-operated device, prototyping a new product, or upgrading an existing power system, this module provides a dependable and scalable solution.

Its compact design allows easy integration into enclosures, development boards, and industrial assemblies. With proper cooling and layout, the XL6019 boost module can handle demanding loads while maintaining stable output voltage — making it a trusted choice for makers and professionals alike.

Package Includes:

1 x XL6019 DC-DC 5A Boost Power Supply Module (RED)

FAQ

1. Where can we buy this XL6019 DC-DC 5A Boost Power Supply Module (RED)?

This product is available online https://aiiottech.in/product/xl6019-dc-dc-5a-boost-power-supply-module/ and also available at our store in Pudupakkam/Kelambakkam, Chennai-603103

2. When can I get this XL6019 DC-DC 5A Boost Power Supply Module (RED) after placing the order?

RGRJ AIIoT TECHNOLOGIES will immediately ship and deliver the product within 1-3 working days.

Video Link: Review of XL6019 step up Boost converter Step up voltage adjustable converter
