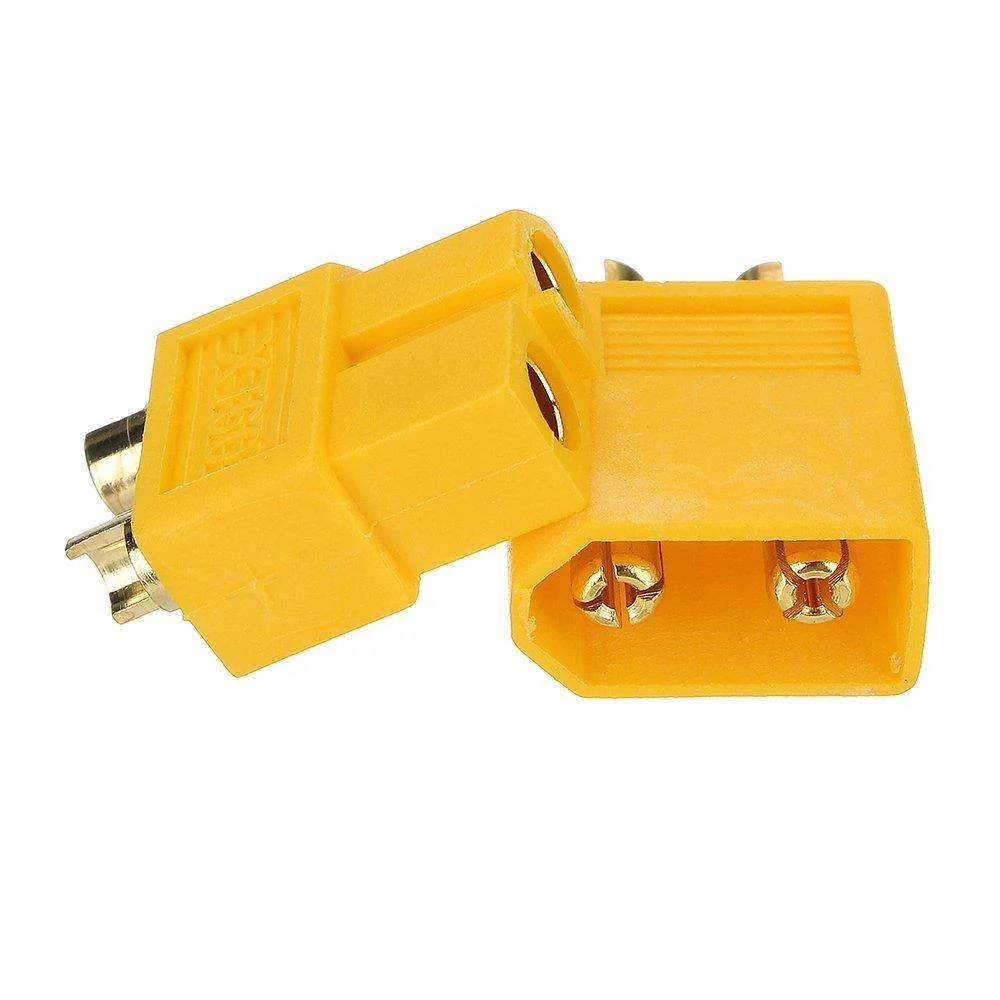

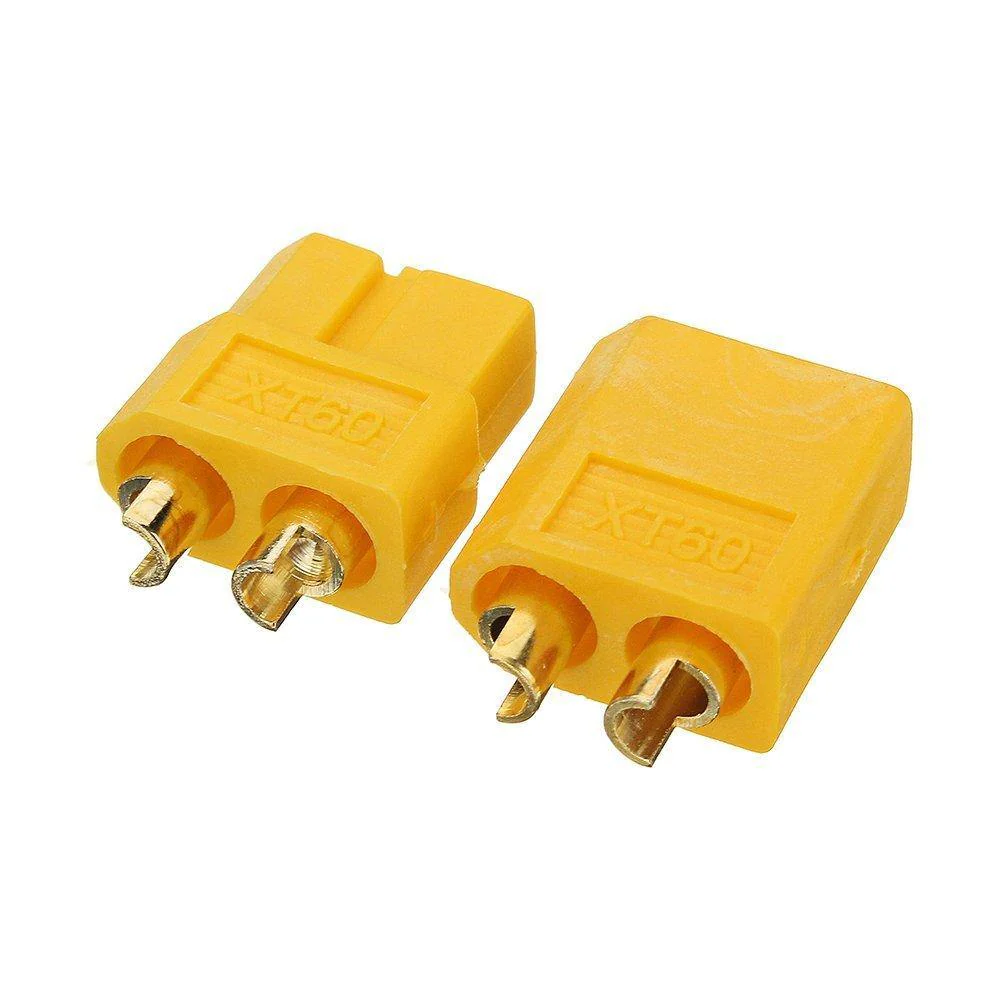

XT60 Connector Male Female Pair

XT60 Connector Male Female Pair is one of the most trusted and widely used high-current connectors for RC hobbyists, drone builders, robotics engineers, and DIY electronics enthusiasts. Designed to handle high power loads safely and efficiently, the XT60 connector ensures a secure, low-resistance connection between batteries, ESCs, motors, chargers, and power distribution boards. Manufactured from high-temperature nylon with gold-plated metal contacts, this connector pair delivers exceptional conductivity, durability, and long-term stability even in demanding projects.

If you are building an RC plane, quadcopter, robotics platform, e-bike battery system, or any high-current power setup, the XT60 connector provides a reliable solution that prevents loose connections, overheating, and performance drops. Its compact design, robust grip, and high current-handling capacity make it a preferred choice in the RC industry and among professional makers around the world.

Key Features

1. High Current Handling Capacity

The XT60 connectors are engineered to carry continuous currents up to 60A, ensuring safe operation in high-power applications. Their low contact resistance helps prevent power loss and heat buildup during extended use.

2. Gold-Plated Contacts for Superior Conductivity

The male and female connectors are equipped with gold-plated bullet pins that offer excellent conductivity, corrosion resistance, and long-term performance without degradation.

3. High-Temperature Nylon Housing

The connector casing is made from heat-resistant nylon, capable of withstanding high temperatures during soldering and heavy current loads. This ensures reliability in extreme environments and long operational life.

4. Secure Anti-Reverse Polarity Design

The XT60’s keyed design ensures correct polarity every time, eliminating the risk of reverse connections that could damage electronic components or battery packs.

5. Tight and Reliable Connection

Its snug-fit structure ensures a vibration-proof and stable connection, suitable for drones, RC cars, and aircraft that often experience rapid motion and high vibration levels.

6. Easy to Solder & Install

Large, pre-formed soldering cups make the XT60 connector easy to solder, even for beginners. The spacious design helps secure strong joints and improves current flow.

7. Widely Compatible

The XT60 connector works seamlessly with a wide range of LiPo, Li-ion, and NiMH batteries, motors, ESCs, and power distribution systems used in RC and DIY electronic projects.

Specifications

• Connector Type: XT60 Male and XT60 Female

• Material: High-temperature Nylon

• Contact Material: Gold-plated brass

• Rated Current: Up to 60A continuous

• Peak Current: Up to 100A (short duration)

• Voltage Rating: DC applications (commonly used up to 22.2V / 6S LiPo)

• Contact Resistance: <0.5mΩ

• Temperature Resistance: Up to 200°C

• Compatibility: Most LiPo batteries, ESCs, chargers, RC power systems

• Color: Yellow (standard XT60 color)

• Package Includes: 1 × XT60 Male Connector, 1 × XT60 Female Connector

Applications

1. Drones & Quadcopters

XT60 connectors are widely used in FPV drones, quadcopters, and multirotors due to their lightweight design and high current capability, ensuring stable power delivery during flight.

2. RC Cars, Boats & Aircraft

Perfect for RC hobby vehicles, the connector prevents power failure during high-speed movement and ensures reliable connectivity even under vibration.

3. Robotics & Automation Projects

Robotics platforms, motor drivers, and power distribution circuits benefit from the XT60’s secure and high-power connection.

4. DIY Electronics & Makers Projects

Ideal for custom battery packs, solar systems, DIY power supply units, and portable electronics where reliable high-current connections are required.

5. Battery Chargers & Power Distribution

Commonly used on battery chargers, power distribution boards, and battery eliminator circuits for seamless and safe power connections.

The XT60 Connector Male-Female Pair is the perfect choice for anyone looking to build a dependable high-current power system. Whether you are into RC hobbies, drone building, robotics, or DIY electronics, this connector ensures safety, efficiency, and long-term reliability in every project.
