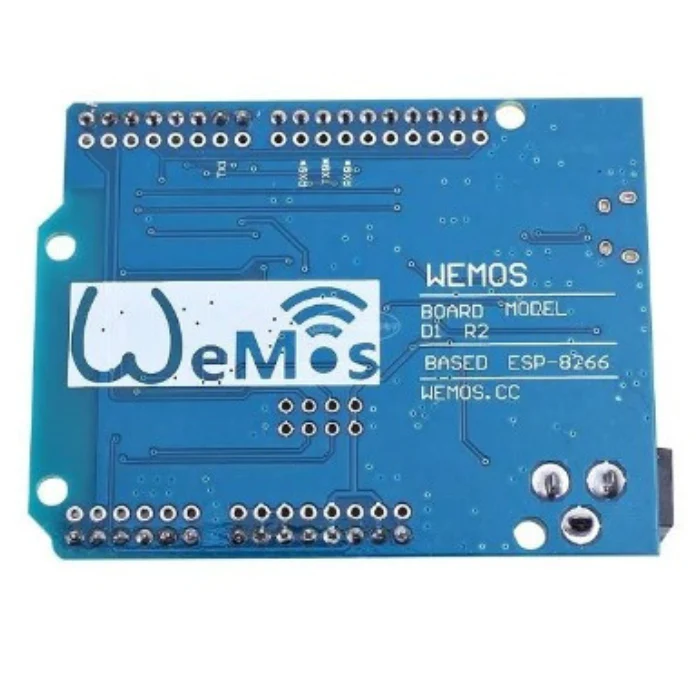

ESP-12E D1 WiFi Development Board

ESP-12E D1 WiFi Development Board is a powerful, easy-to-use IoT microcontroller platform designed for makers, students, engineers, and hobbyists who want to build WiFi-enabled embedded systems with minimal effort. Powered by the advanced ESP8266EX WiFi SoC, this development board delivers excellent processing power, strong wireless connectivity, and wide compatibility with the Arduino IDE, Lua, and MicroPython, making it an ideal choice for a wide range of smart electronics projects.

Whether you are creating home automation systems, smart sensors, IoT prototypes, or wireless data-logging devices, the ESP-12E D1 offers a perfect balance of performance, flexibility, and simplicity. Its NodeMCU-style design, supportive USB-to-serial interface, and rich GPIO pinout make it a go-to board for rapid prototyping and advanced IoT development.

Key Specifications

• Microcontroller: ESP8266EX (32-bit Tensilica L106 processor)

• Operating Voltage: 3.3V

• Input Voltage (via USB): 5V

• Flash Memory: 4 MB

• Clock Speed: 80 MHz (upgradable to 160 MHz)

• WiFi Standard: 802.11 b/g/n

• WiFi Security: WPA/WPA2

• I/O Pins:

  • 11 digital input/output pins

  • 1 analog input (0–3.3V range)

  • PWM support

  • UART, I2C, SPI communication

• USB-to-Serial Converter: CH340G

• Dimensions: Approx. 68 mm × 31 mm

• Compatibility: Arduino, NodeMCU, ESP8266 SDK, MicroPython

• Programming: Micro-USB cable

Features

1. Built-in WiFi for Seamless Connectivity

The ESP-12E module integrates a highly reliable WiFi transceiver, allowing devices to connect wirelessly to networks, servers, and cloud platforms. This is ideal for real-time monitoring, IoT dashboards, and remote automation.

2. Arduino IDE Support

The board is fully compatible with the Arduino programming environment, making it extremely accessible for beginners. Uploading sketches is as simple as programming an Arduino UNO.

3. High Processing Power

With its efficient 32-bit processor, the ESP-12E handles multiple tasks, sensor readings, and communication operations simultaneously without lag.

4. Compact and Breadboard-Friendly Design

Its slim form factor and pin layout make it easy to plug into a breadboard, enhancing rapid testing and prototyping setup.

5. USB Programming with CH340G

A stable USB-to-serial interface ensures smooth code uploading and serial communication through a standard micro-USB cable.

6. Rich Peripheral Support

From PWM outputs to communication protocols like UART, I2C, and SPI, the board supports a wide range of sensors, actuators, and modules.

7. Low-Power Operation

Optimized for battery-powered devices, the ESP-12E includes sleep modes for energy-efficient performance, essential for long-term IoT deployments.

8. Large Community & Library Support

Thousands of online tutorials, sample programs, and libraries make development faster and easier than ever.

Applications

The ESP-12E D1 WiFi Development Board is widely used across IoT, automation, and wireless electronics projects. Some common applications include:

1. Home Automation Systems

Build WiFi-controlled lights, switches, appliances, and environmental monitoring systems.

2. Smart Sensors and Data Logging

Perfect for creating temperature, humidity, air-quality, and motion-sensing devices that upload data to cloud services like ThingSpeak, Firebase, or Blynk.

3. IoT Prototyping and Research

Engineers and researchers use the board to rapidly prototype connected devices, test wireless systems, and develop proofs of concept.

4. Remote Monitoring and Control

Ideal for IoT dashboards and applications requiring real-time updates, alerts, and remote device activation.

5. Robotics and Automation

Use the board to add WiFi capabilities to robots, automation equipment, and control units.

6. Smart Agriculture and Environmental Monitoring

Deploy sensors to monitor soil moisture, weather, water levels, and other parameters with cloud integration.

7. DIY Electronics Projects

Hobbyists can create wearable devices, WiFi alarms, wireless controllers, and custom smart gadgets.

The ESP-12E D1 WiFi Development Board is a versatile and cost-effective solution for bringing your smart device ideas to life. With its strong WiFi performance, Arduino compatibility, and easy integration with modern IoT tools, it is one of the best choices for developers who want reliability and flexibility in a compact board.
