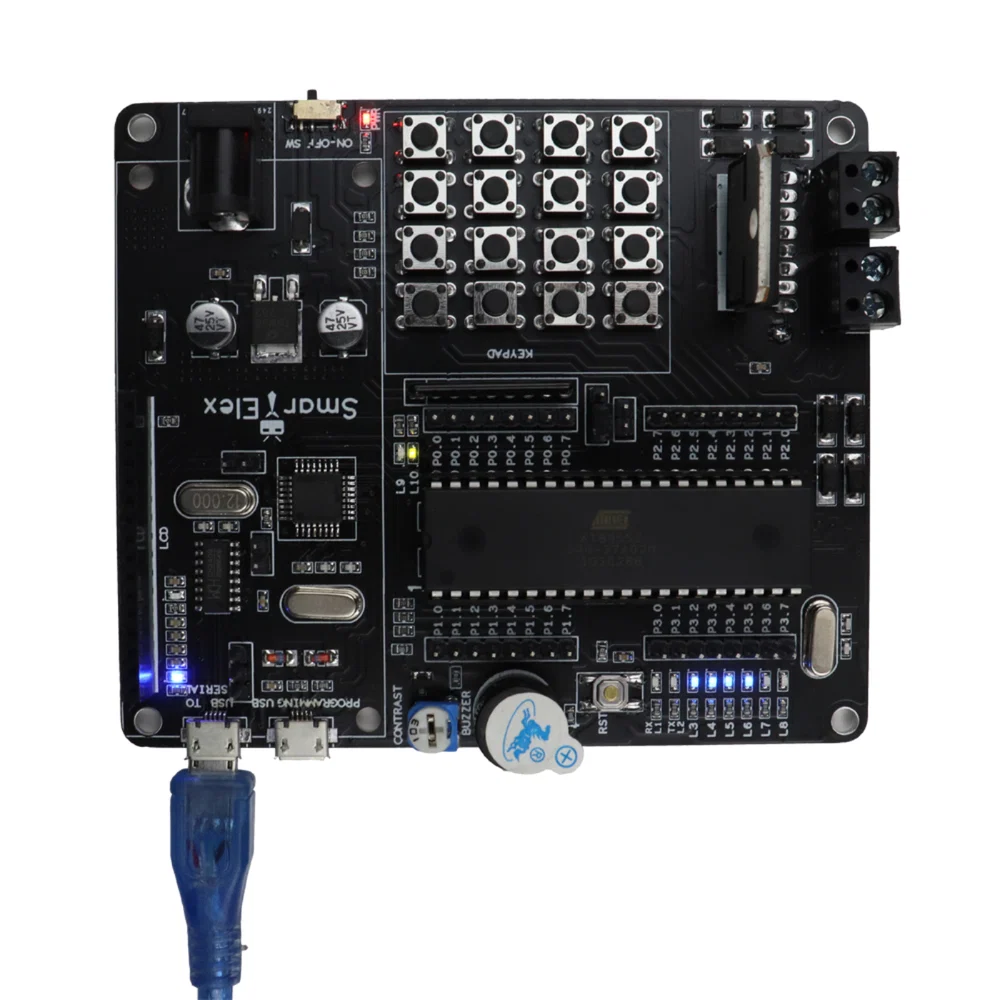

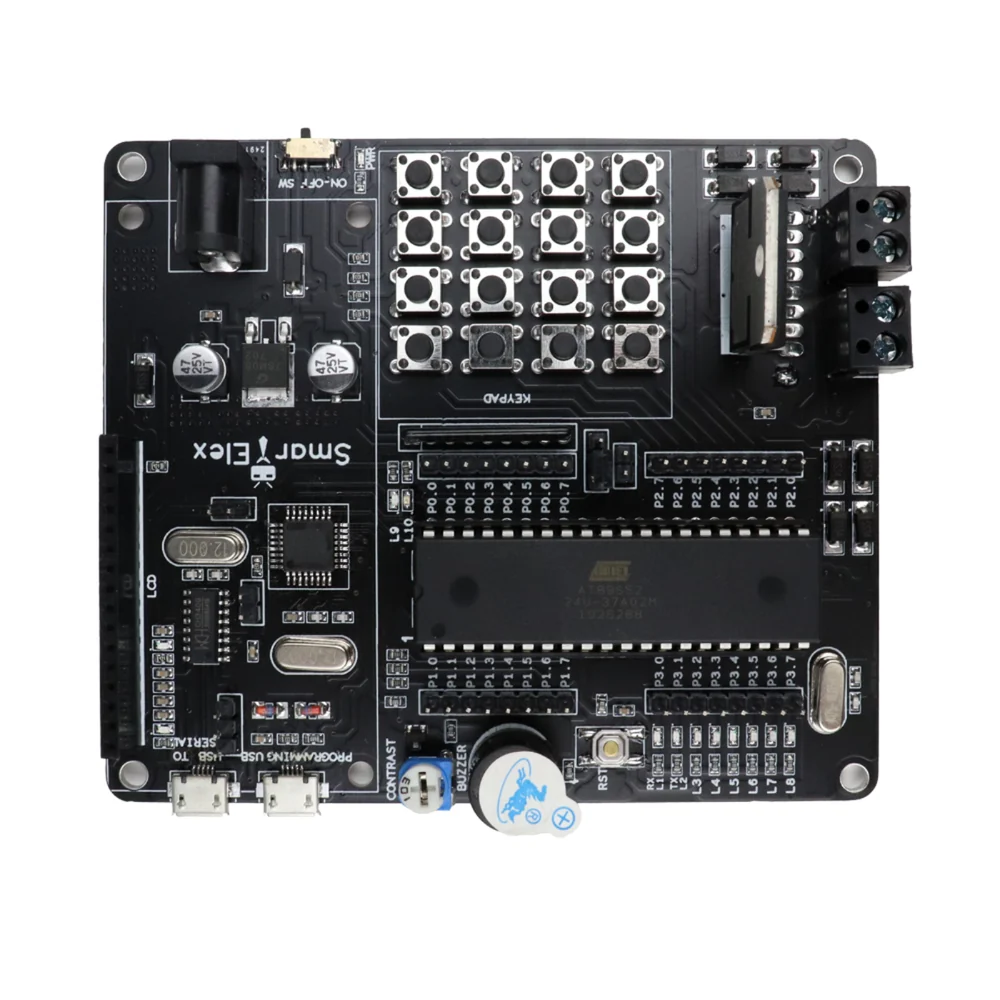

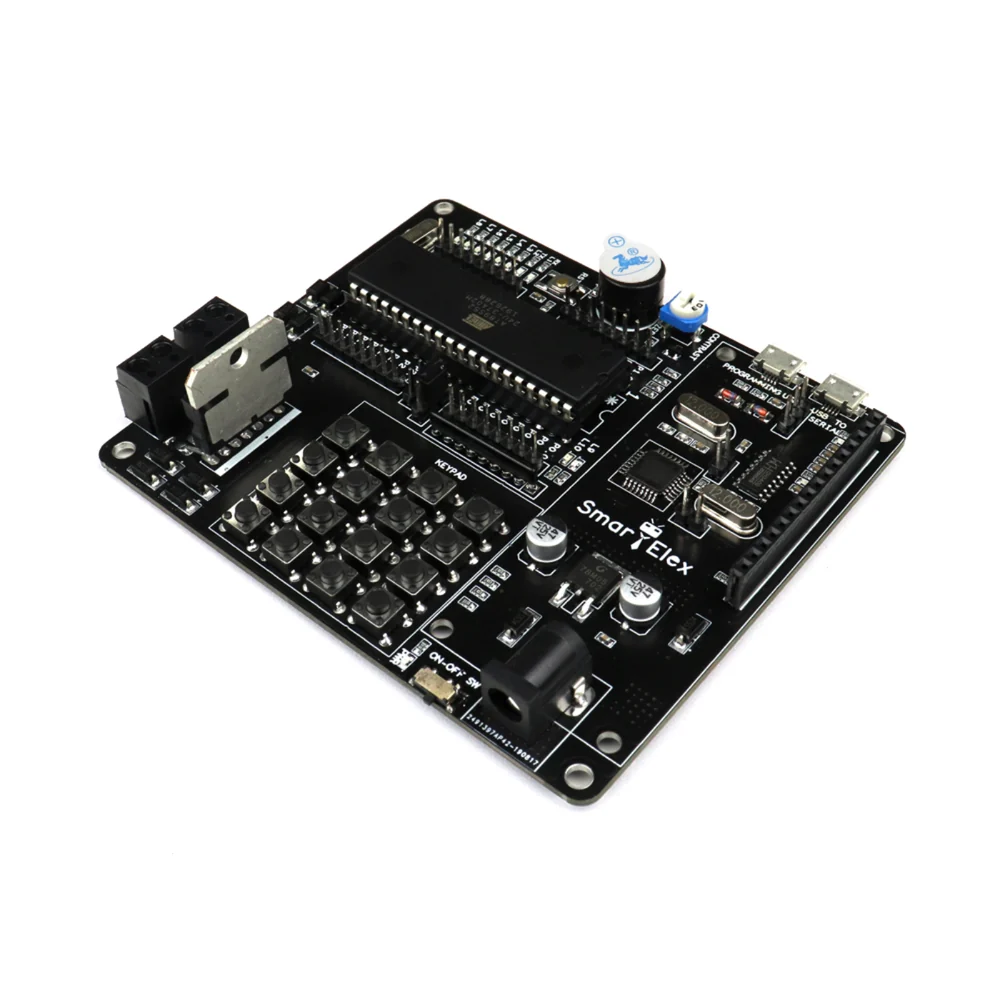

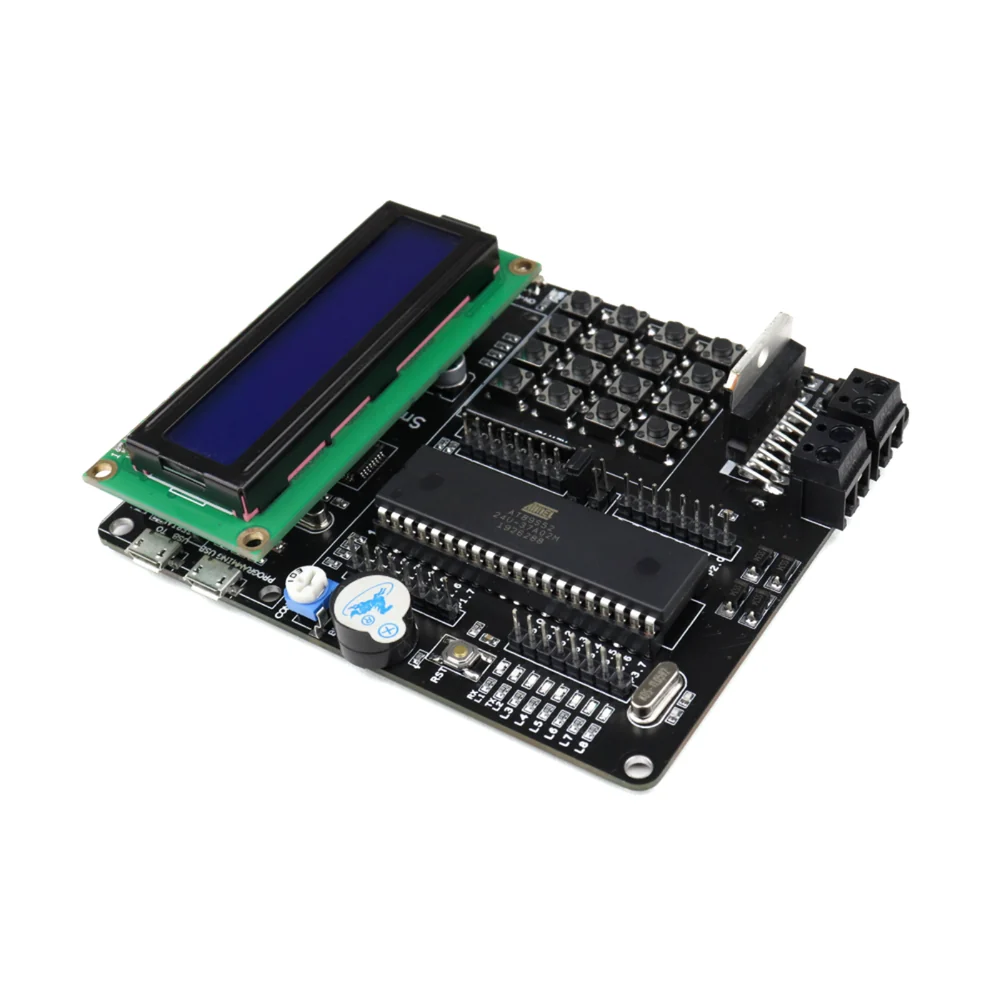

Microcontroller Board with L298P Motor Driver (AT89S52)

The Microcontroller Board with L298P Motor Driver (AT89S52) is a versatile development and motor-control board designed for embedded systems, robotics, automation, and educational applications. Built around the AT89S52 8-bit microcontroller and integrated with an L298P dual H-bridge motor driver, this board provides a convenient platform for controlling DC motors and other motor-driven loads without requiring a separate motor-driver module.

The AT89S52 is a popular 8051-family microcontroller featuring 8 KB of Flash memory and a wide range of GPIO interfaces for interfacing sensors, switches, displays, relays, and other peripherals. The onboard L298P motor driver enables bidirectional control of two DC motors or a single motor with suitable configuration. This makes the board particularly useful for students, researchers, hobbyists, and engineers developing 8051-based robotics and automation projects.

Key Features of Microcontroller Board with L298P Motor Driver

• AT89S52 8-bit 8051-family microcontroller for embedded control applications
• Integrated L298P dual H-bridge motor driver for DC motor control
• Supports forward and reverse motor rotation
• Suitable for controlling two DC motors independently, subject to motor-driver ratings
• Onboard motor-control interface simplifies hardware development
• Multiple GPIO pins available for connecting external sensors and peripherals
• Suitable for 8051 embedded-system programming and learning
• Compact development-board design for prototyping
• Useful for robotics, automation, motor-control, and educational projects
• Reduces wiring requirements compared with using separate microcontroller and motor-driver modules
• Suitable for interfacing with switches, LEDs, sensors, LCDs, keypads, and other modules

Technical Specifications

Applications of Microcontroller Board with L298P Motor Driver

The AT89S52 L298P Motor Driver Board can be used in a wide range of embedded and automation applications, including:

• Robotic vehicle projects
• Line-following and obstacle-avoiding robots
• Two-wheel and four-wheel robot platforms
• DC motor speed and direction control
• Conveyor-belt automation prototypes
• Miniature industrial automation systems
• Automated gates and mechanisms
• Sensor-based motor control
• Embedded control-system experiments
• 8051 microcontroller laboratory projects
• Mechatronics and robotics education
• Motorized IoT and automation prototypes

Project Ideas using Microcontroller Board with L298P Motor Driver

This development board is an excellent choice for engineering students, makers, and embedded-system learners. Some project ideas include:

1. 8051 Line-Following Robot – Use IR sensors to detect a track and control two DC motors through the L298P driver.
2. Obstacle-Avoiding Robot – Interface an ultrasonic distance sensor with the AT89S52 and automatically control motor direction based on detected obstacles.
3. Bluetooth-Controlled Robot – Add a Bluetooth module to remotely control the robot’s forward, reverse, left, and right movements.
4. Automatic Conveyor System – Use sensors and the AT89S52 to control a DC motor for a miniature conveyor-belt automation system.
5. Sensor-Based Motor Controller – Develop a system that automatically starts, stops, or reverses a motor according to temperature, light, proximity, or other sensor inputs.
6. 8051-Based Smart Vehicle – Combine sensors, display modules, and motor control to create an autonomous robotic vehicle prototype.
7. IR Remote Controlled Robot – Use an IR receiver and remote to control forward, reverse, left, and right movements.
8. Mini Automated Parking System – Use IR sensors to detect vehicle positions and control a motorized parking mechanism.
9. DC Motor Speed Controller – Implement PWM-based speed control of a DC motor using the AT89S52 and L298P.
10. Automatic Door/Gate Controller – Control a DC geared motor to open and close a miniature automatic door or gate based on sensor input.
11. Obstacle Detection Robotic Vehicle – Develop a robotic vehicle that detects obstacles and changes its direction automatically.
12. Two-Axis Motor Control System – Independently control two DC motors to demonstrate forward/reverse operation, speed control, and coordinated motor movement.

Why Choose This Board?

Combining the AT89S52 microcontroller and L298P motor driver on a single development board makes prototyping easier and more organized. It is particularly suitable for learning the fundamentals of 8051 programming, GPIO interfacing, motor control, robotics, and embedded-system design. Instead of designing the microcontroller and motor-driver sections separately, students and developers can use the integrated platform to concentrate on application development and control algorithms.

Package Includes

1 × AT89S52 Microcontroller Development Board with Integrated L298P Motor Driver

FAQ

1. Where can we buy this AT89S52 Microcontroller Development Board with Integrated L298P Motor Driver?

This product is available online https://aiiottech.in/product/microcontroller-board-with-l298p-motor-driver/ and also available at our store in Pudupakkam/Kelambakkam, Chennai-603103

2. When can I get this AT89S52 Microcontroller Development Board with Integrated L298P Motor Driver?

RGRJ AIIoT TECHNOLOGIES will immediately ship and deliver the product within 1-3 working days.

Video Link: How to Upload Code in 8051 Microcontroller Development Board
