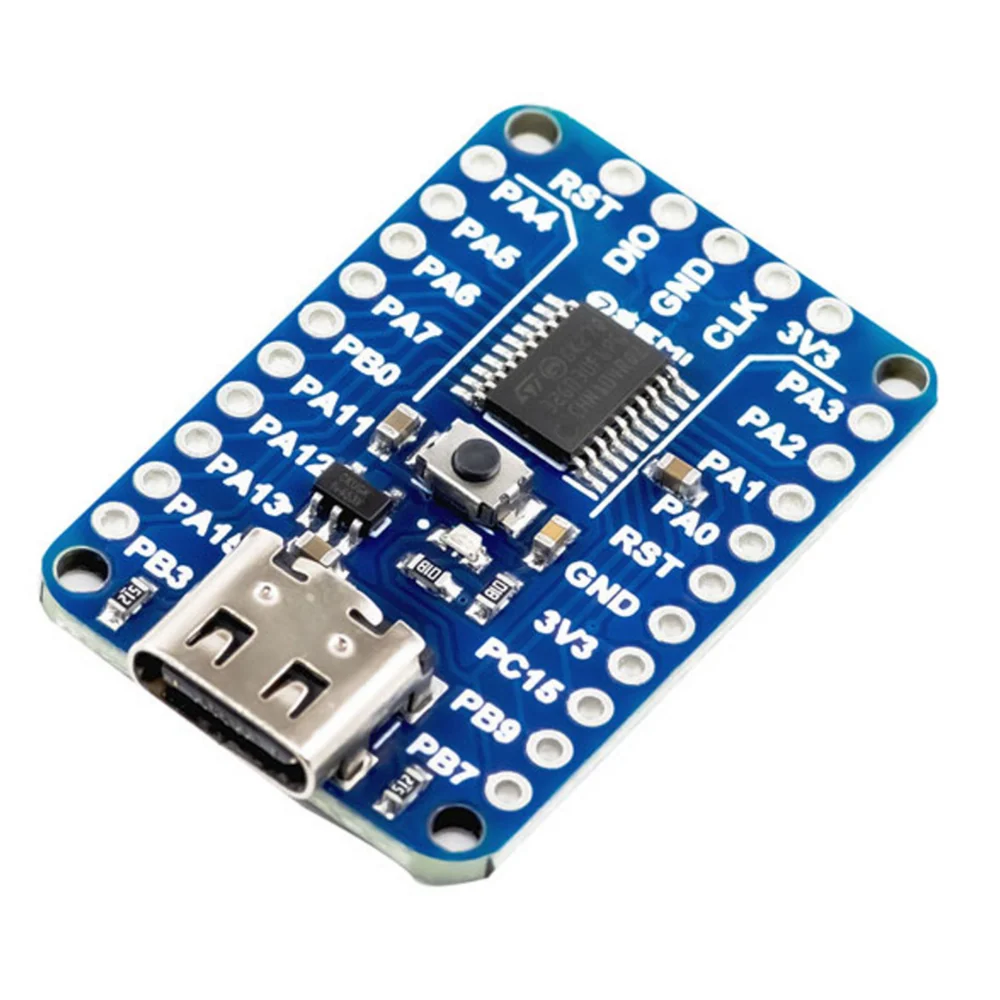

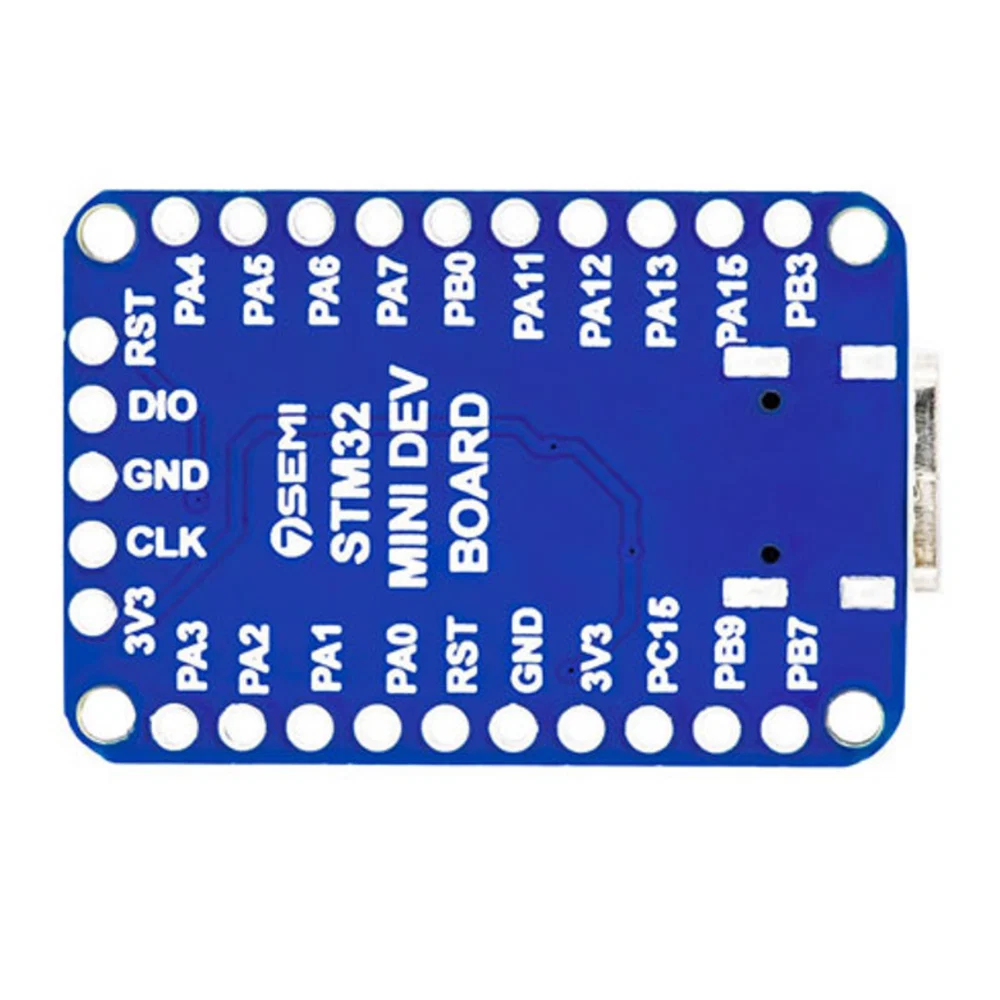

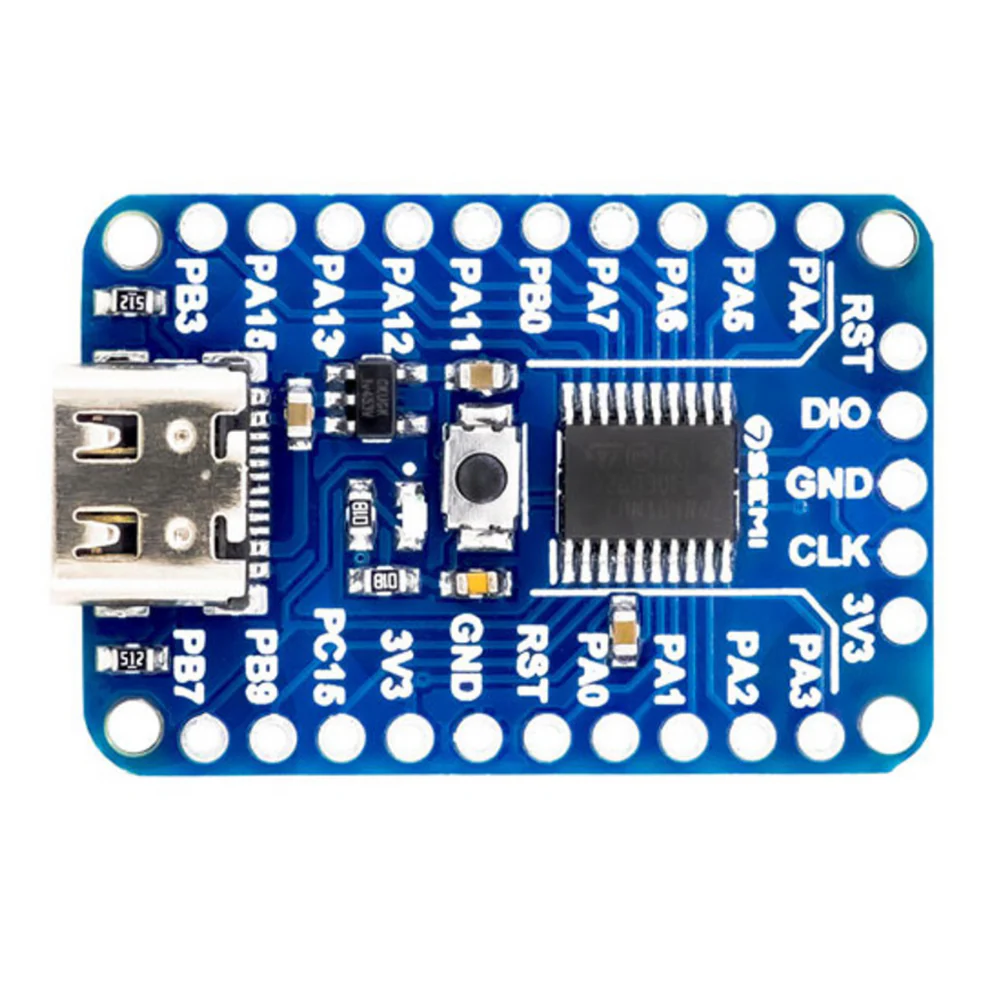

STM32G030F6P6 Mini Development Board

The STM32G030F6P6 Mini Development Board is a compact, cost-effective, and versatile development platform designed for embedded systems, IoT, automation, sensor interfacing, robotics, and low-power electronics projects. Based on the STMicroelectronics STM32G030F6P6 32-bit Arm Cortex-M0+ microcontroller, the board delivers a combination of high processing performance, low power consumption, integrated peripherals, and compact form factor.

The STM32G030F6P6 MCU operates at up to 64 MHz and provides 32 KB Flash memory and 8 KB SRAM, making it suitable for developing efficient embedded firmware and real-time control applications. The MCU also integrates a 12-bit ADC, timers, PWM capabilities, DMA, I²C, SPI, and USART interfaces.

With an onboard USB interface for power, a reset button, and an SWD (Serial Wire Debug) interface for programming and debugging, this mini development board provides a convenient environment for students, hobbyists, researchers, and embedded developers.

Key Features of STM32G030F6P6 Mini Development Board

• Based on STM32G030F6P6 Arm Cortex-M0+ 32-bit MCU
• CPU frequency up to 64 MHz
• 32 KB Flash memory
• 8 KB SRAM
• 12-bit ADC for analog sensor interfacing
• Multiple GPIO pins for digital input/output
• Hardware PWM and timer peripherals
• I²C, SPI, and USART communication interfaces
• Onboard SWD programming and debugging interface
• Onboard reset button
• Compact development board suitable for embedded prototyping
• Supports low-power operating modes
• Suitable for industrial, IoT, consumer electronics, and educational applications

Specifications

The STM32G030F6P6 family supports low-power Sleep, Stop, and Standby modes, making it particularly useful for battery-powered embedded applications. ST also specifies multiple timers, DMA, RTC functionality, and flexible communication peripherals for the MCU.

Applications of STM32G030F6P6 Mini Development Board

The STM32G030F6P6 Development Board can be used in a wide range of embedded and electronics applications, including:

• IoT sensor nodes
• Smart home automation
• Industrial automation and monitoring
• Environmental monitoring systems
• Temperature and humidity data loggers
• Motor and actuator control
• LED and display controllers
• Battery-powered devices
• Portable instrumentation
• Robotics projects
• Consumer electronics
• Embedded control systems
• Educational ARM microcontroller experiments
• Rapid prototyping and product development

Project Ideas

This STM32G030F6P6 mini board is an excellent platform for developing practical academic and engineering projects. Some project ideas include:

1. IoT Temperature Monitoring System – Interface a temperature sensor and transmit measurements through UART, SPI, or I²C.
2. Smart Energy Monitor – Use the onboard ADC to measure voltage/current sensing circuits and calculate electrical parameters.
3. DC Motor Speed Controller – Generate PWM signals and implement closed-loop motor-speed control.
4. Automatic Water Level Controller – Interface water-level sensors and control a pump using GPIO and relay circuitry.
5. Digital Thermometer – Combine an I²C temperature sensor with an OLED display.
6. Mini Data Logger – Collect sensor readings and store or transmit data periodically.
7. Smart Street Light Controller – Use an LDR/ambient-light sensor and PWM-based LED control.
8. Industrial Sensor Node – Develop a compact node for acquiring analog sensor data and communicating with a gateway.

Why Choose STM32G030F6P6 Mini Development Board?

With its 64 MHz Cortex-M0+ processor, 32 KB Flash, 8 KB SRAM, ADC, timers, PWM, communication interfaces, SWD debugging, and compact form factor, this board provides an economical starting point for learning STM32 development as well as prototyping real-world embedded products.

Package Includes

1 × STM32G030F6P6 Mini Development Board

FAQ

1. Where can we buy this STM32G030F6P6 Mini Development Board ?

This product is available online https://aiiottech.in/product/stm32g030f6p6-mini-development-board/ and also available at our store in Pudupakkam/Kelambakkam, Chennai-603103

2. When can I get this STM32G030F6P6 Mini Development Board after placing the order?

RGRJ AIIoT TECHNOLOGIES will immediately ship and deliver the product within 1-3 working days.
