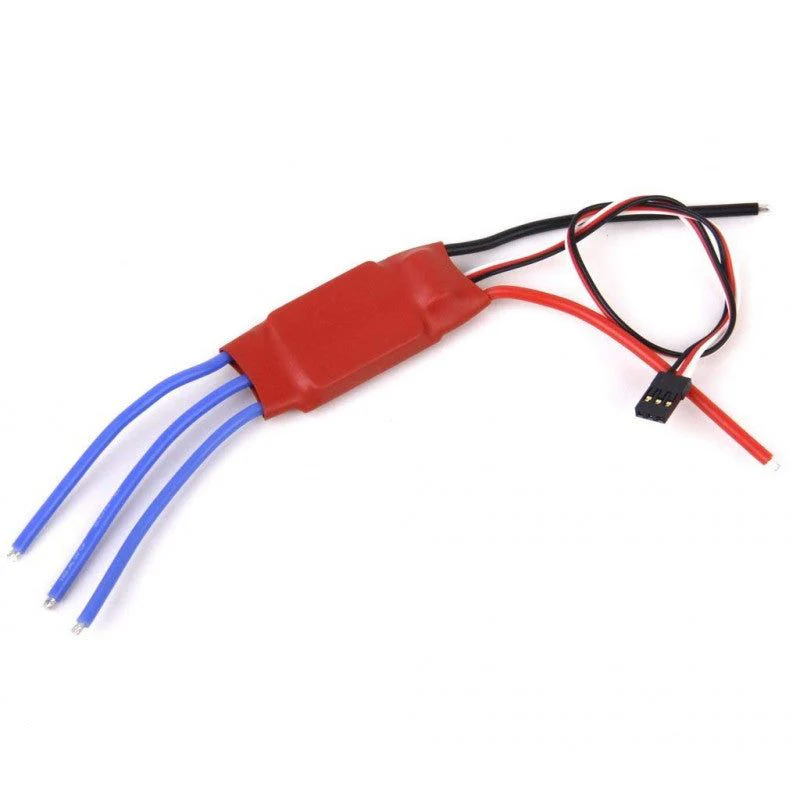

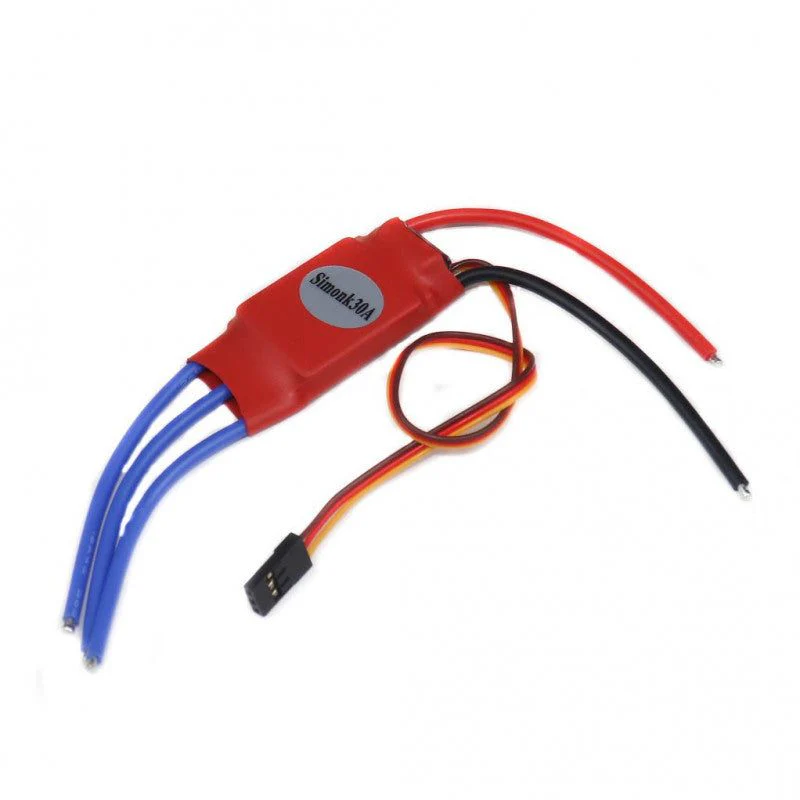

Simonk 30A ESC without connector

Simonk 30A ESC without connector is a highly efficient, fast-response electronic speed controller designed for multirotor drones, RC aircraft, DIY robotics, and high-performance brushless motor applications. Engineered with the popular SimonK firmware, this ESC offers extremely smooth throttle response, rapid motor acceleration, and exceptional stability—making it a preferred choice for aeromodellers, drone racers, and RC hobbyists seeking optimal control and performance.

Built for versatility, this ESC comes without connectors, giving users complete freedom to solder their preferred connector types based on project needs. Whether you require bullet connectors, XT-series connectors, or direct wiring, it ensures maximum flexibility for customized setups. Its high current handling capability of 30A continuous current and 40A burst makes it suitable for a wide variety of motors used in quadcopters, hexacopters, tricopters, and fixed-wing aircraft.

The Simonk 30A ESC is known for its ultra-fast refresh rates, optimized PWM control, and lightweight design, resulting in better flight stability, reduced vibration, and improved motor performance. With its compact structure and high-quality MOSFETs, this ESC maintains excellent efficiency and reliable temperature control even during demanding operations.

Whether you are building a new multirotor or upgrading an existing one, the Simonk 30A ESC without connector delivers the reliability, control accuracy, and tuning flexibility required for smooth and safe flights.

Key Features

1. Pre-Flashed with SimonK Firmware

• Ensures exceptional throttle linearity and rapid response.

• Ideal for multirotors requiring precise, real-time motor speed adjustments.

2. 30A Continuous Current Support

• Delivers stable current handling for powerful brushless motors.

• Supports up to 40A burst current, making it suitable for high-load applications.

3. Customizable Connection Options

• Comes without connectors, allowing users to choose and solder their preferred connectors.

• Offers full control for professional builders and DIY enthusiasts.

4. High Refresh Rate & Optimized Timing

• Features high-speed microcontroller and advanced timing algorithms.

• Provides smoother motor rotation, reduced noise, and lower latency.

5. Lightweight & Compact Design

• Minimal weight for enhanced flight time and efficient power distribution.

• Easy to mount on drones, RC planes, and robotics systems.

6. Over-Heat & Over-Current Protection

• Built-in safety features ensure ESC longevity and system reliability.

• Protects motors and batteries during overload conditions.

7. Compatible with 2–4S LiPo Batteries

• Supports a wide voltage range for versatile applications.

• Perfect for both hobby-grade and professional UAV builds.

8. Plug-and-Play Operation

• Simple to install, configure, and calibrate.

• Works seamlessly with most flight controllers including APM, KK2, Naze32, F3, F4, Pixhawk, and more.

Technical Specifications

• Firmware: SimonK pre-installed

• Continuous Current: 30A

• Burst Current: 40A (10 seconds)

• Input Voltage: 2–4S LiPo battery

• BEC Output: No BEC (OPTO ESC)

• Connector Type: No connectors (bare wire)

• Weight: Approx. 25g

• Dimensions: Compact, easy-to-mount form factor

• Motor Compatibility: Brushless DC motors (multirotor rated)

• Safety Features: Over-temperature & over-current protection

Applications

1. Multirotor Drones

• Perfect for quadcopters, hexacopters, octocopters, tricopters.

• Provides stable and precise motor control for aerial photography drones, FPV racing drones, and autonomous UAVs.

2. RC Aircraft & Helicopters

• Ensures smooth throttle control in fixed-wing RC planes and small helicopters.

3. DIY Robotics

• Used in autonomous robots, R&D projects, and motor speed control experiments.

4. Educational & Research Projects

• Ideal for engineering students, makers, and drone researchers needing firmware-based ESC performance.

5. Custom RC Builds

• Suitable for hobbyists building high-speed models or upgrading older ESCs.

The Simonk 30A ESC without connector is the perfect choice for anyone needing a reliable, customizable, and high-performance speed controller. With its superior firmware, robust construction, and flexibility, it ensures a smooth, powerful, and responsive experience across all RC and drone applications.
